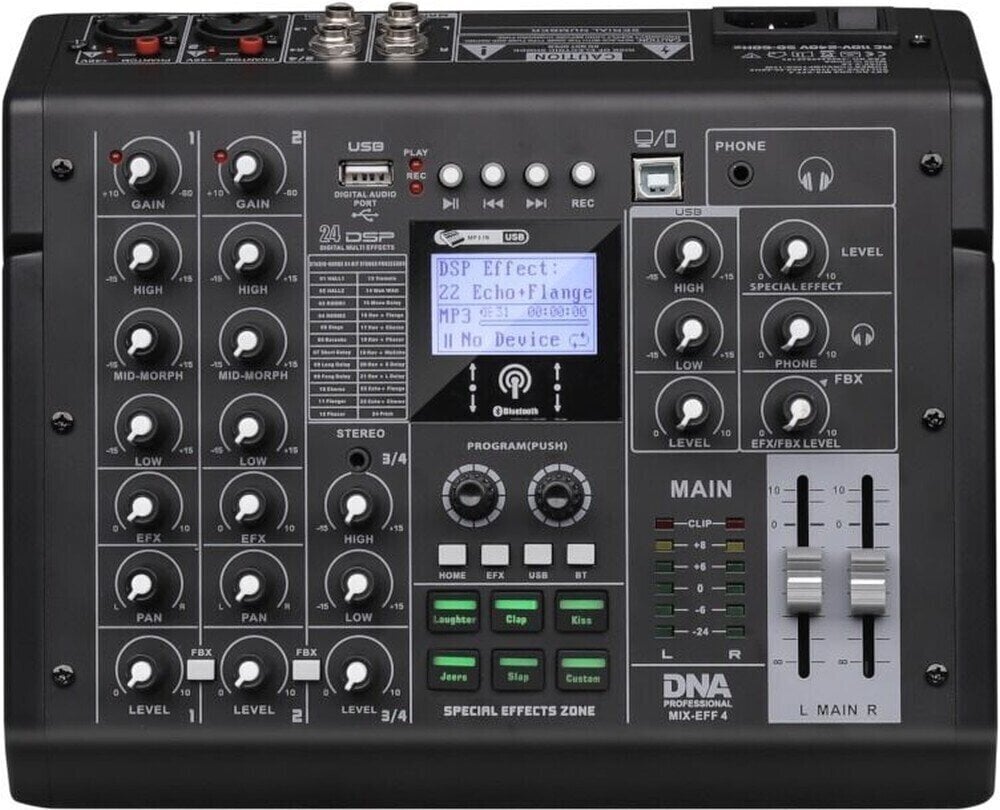

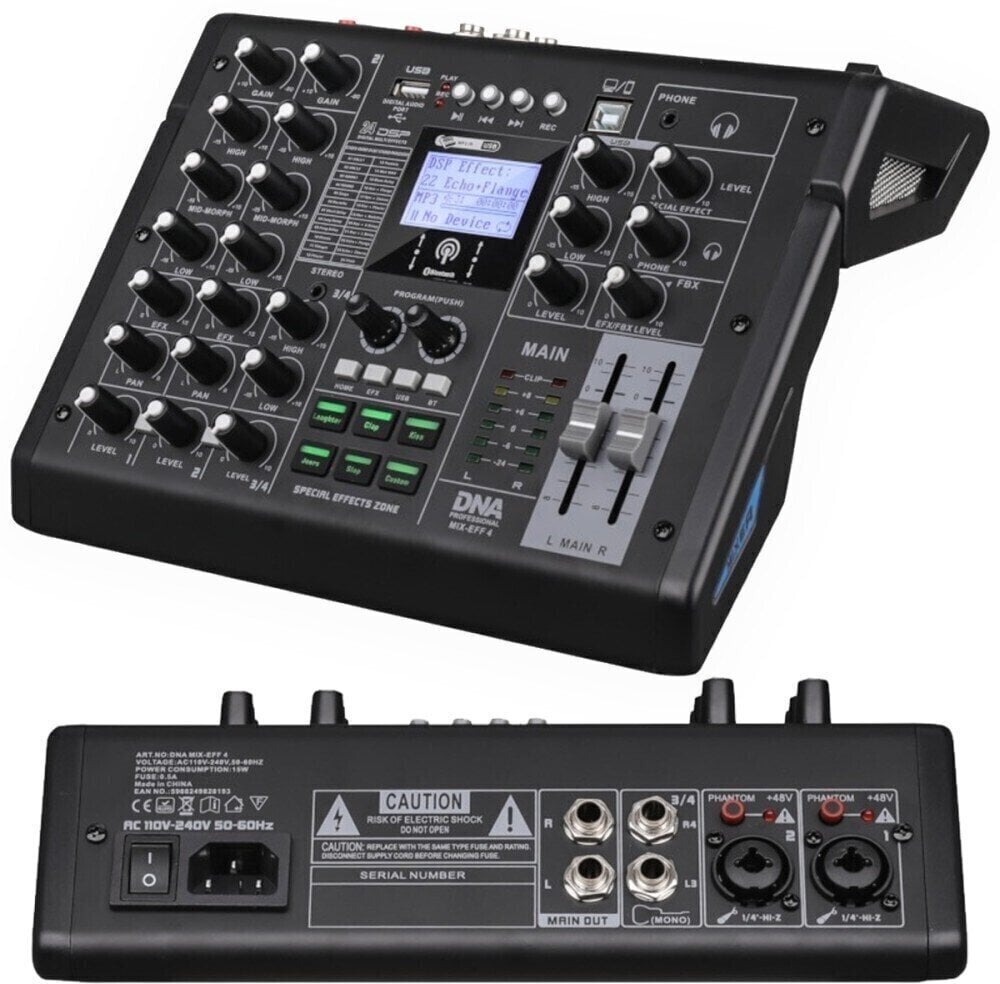

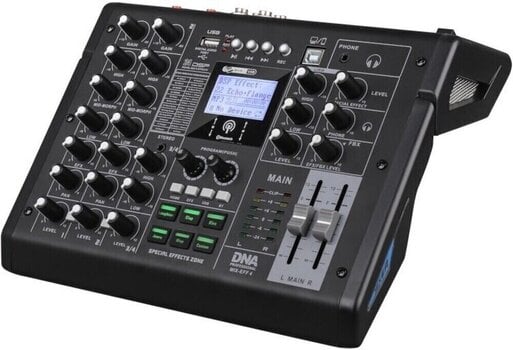

DNA MIX-EFF 4 Смесителен пулт

Compact 4-Channel Analog Mixer with Bluetooth and DSP Effects

The DNA MIX-EFF 4 is a compact 4-channel analog mixer that brings studio-grade connectivity into a desktop-sized unit. Built for podcasters, streamers, DJs, and small live rigs, it combines two balanced combo XLR/jack inputs with +48V phantom power, a stereo 3.5 mm aux input, USB-A/USB-B ports, and Bluetooth 3.0 wireless streaming. This hardware is the right choice for creators who need a single hub for microphones, instruments, computers, and mobile devices without sacrificing portability.

What Makes This Mixer Stand Out in Its Category

Unlike typical 4-channel models, this unit features a dedicated sound effects zone with five preset samples (Laughter, Clap, Kiss, Jeers, Slap) and a Customize button that lets users record their own effect. The 24-bit stereo DSP engine delivers 24 multieffects (echo, reverb, delay, and more) assignable per channel, while the FBX feedback elimination switch kills live mic howl before it starts.

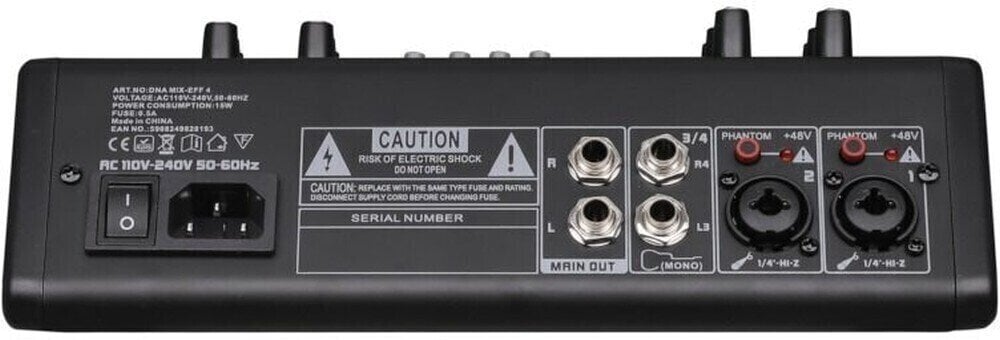

Inputs and Outputs — Full Connectivity for Modern Setups

Versatile I/O is the heart of any compact mixer, and this unit covers microphone, instrument, line, digital, and wireless sources without adapters.

• Mic/Line inputs handle both dynamic and condenser microphones as well as instruments via 2× combo XLR/jack 6.3 mm connectors.
• Line Inputs: 2× jack 6.3 mm mono + 1× jack 3.5 mm stereo — for keyboards, playback devices, or phones
• Digital Ports: USB-A (storage) + USB-B (computer/smartphone) — playback and recording
• Wireless Streaming: Bluetooth 3.0 — cable-free audio from any mobile device
• Outputs: 2× jack 6.3 mm main + 1× jack 3.5 mm headphone — feed monitors and a personal monitoring mix

EQ and DSP — Shape Your Sound Per Channel

Each channel carries its own gain stage and three-band EQ, giving precise tonal control before the master bus.

• GAIN: +10 to +60 dB with PEAK indicator — set clean input levels without clipping
• 3-Band EQ: LOW ±15 dB @ 80 Hz, MID-MORPH ±15 dB @ 2.5 kHz, HIGH ±15 dB @ 12 kHz — sculpt bass, mids, and air per channel
• DSP Processor: 24-bit stereo, 24 multieffects — assignable reverb, echo, delay per channel via EFX knob
• FBX Switch: feedback elimination — kills live mic howl automatically

Performance Specs and Build — Quiet, Compact, Road-Ready

Compact mixers need clean signal paths and rugged housings to survive daily transport and live use.

• Frequency Response: 20–20,000 Hz — full-range audio reproduction
• Signal-to-Noise Ratio: >90 dB — quiet operation for streaming and recording
• THD: <0.03% @ 1 kHz — clean, transparent amplification
• Max Output Level: +19 dBu — drives passive monitors without distortion
• Dimensions: 25.5 × 21.5 × 9.2 cm — fits any desk or gig bag
• Net Weight: 1.4 kg — lightweight for mobile setups
• Housing: iron + plastic — durable yet portable
• Display: 2.5" LED — clear mode and level feedback
• Phantom Power: +48 V — powers condenser microphones

Who This Mixer Is For — Podcasters, Streamers, and Mobile Performers

The DNA MIX-EFF 4 is the right choice for podcasters, YouTubers, and live streamers who need phantom-powered condenser mics, Bluetooth phone interviews, and instant sound effects in one box. Solo musicians and small duos benefit from the four-channel layout, per-channel EQ, and DSP reverb for vocal and instrument layering. DJs and event hosts get a portable hub for backing tracks, wireless streaming, and microphone hosting, while teachers and online instructors can plug in a laptop via USB-B, add a lavalier mic, and trigger applause or laughter samples.

DNA Professional and the MIX-EFF Series

The manufacturer positions the MIX-EFF series as a bridge between entry-level mixers and full studio consoles, targeting creators who want effects, Bluetooth, and USB in a single compact unit. This model sits at the bottom of the lineup with its 4-channel architecture, while siblings like the MIX-EFF 6 expand the same feature set for larger setups.
